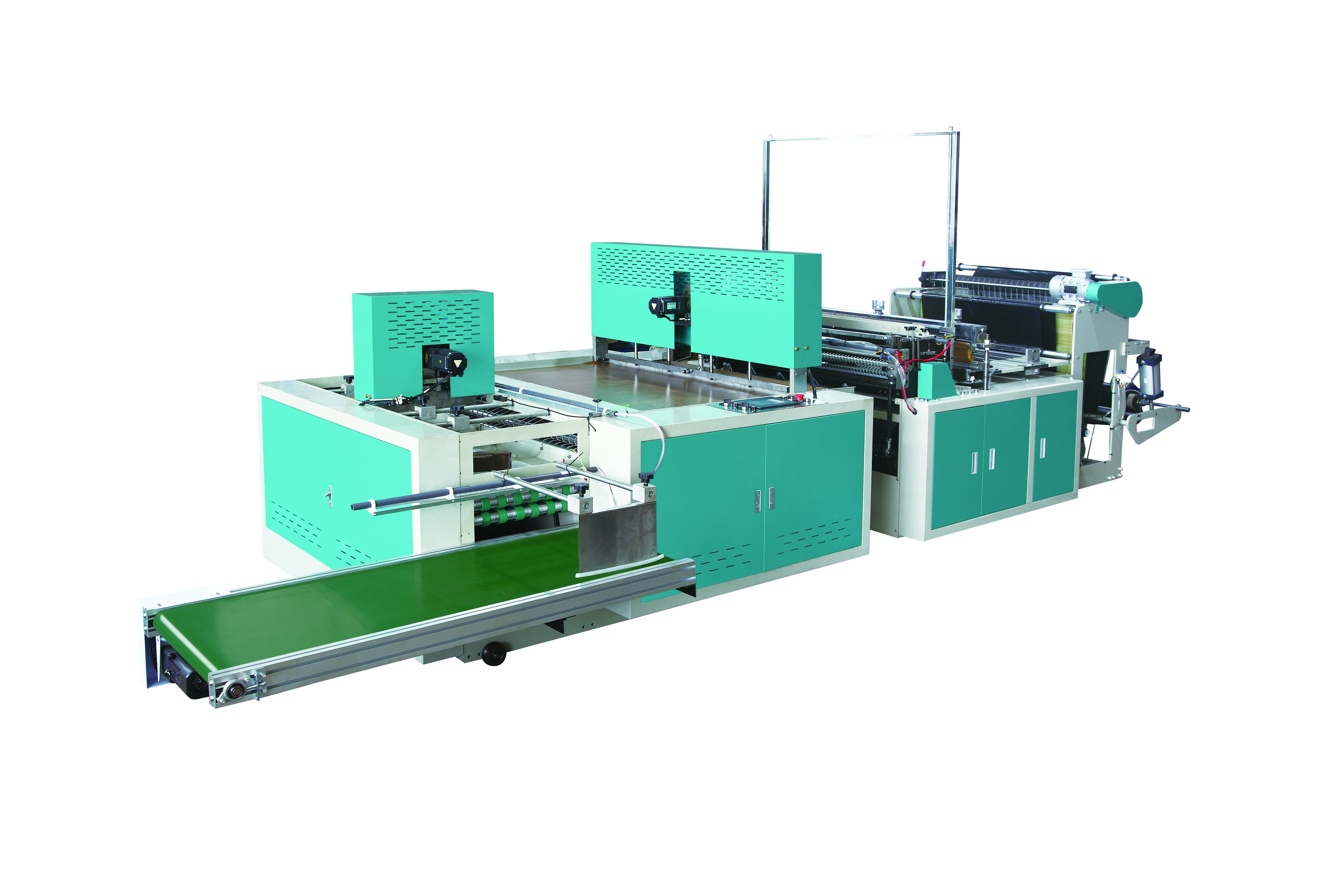

Single-layer hot sealing cold cutting bag making machine is composed of optical, mechanical, electrical, frequency conversion and so on. It is a new generation of computer controlled hot sealing cold cutting bag making machine developed by foreign advanced bag making machine technology principle. The machine is equipped with photoelectric eye tracking, main motor frequency conversion speed regulation, stable operation, high bag making precision.
1. The whole machine adopts computer touch screen control, servo motor fixed length, DC motor feeding.
2. Arbitrary fixed length, step size photoelectric tracking, accurate and stable. 3.With feeding, sealing and cutting, counting, discharging, alarm and other automatic functions.

1. | 型号 Model | YF-HC4Z1200 YF-HC4Z1200 |
| 2. | 制袋宽度 Max width of bag | 100-1100mm 100-1100mm |
| 3. | 制袋长度 Max length of bag | 800-1500mm 800-1500mm |
| 4. | 制袋厚度 Thickness of bag | 0.01-0.20mm 0.01-0.20mm |
| 5. | 制袋速度 Bag making speed | 50-150pcs/min 50-150pcs/min |
| 6. | 主机功率 Main motor power | 2.2kw 2.2kw |
| 7. | 放料直径 Discharge diameter | 800mm 800mm |
| 8. | 总功率 Total power | 10kw 10kw |
| 9. | 外形尺寸 Dimensions | 6000x1700x1500mm 6000x1700x1500mm |
| 10. | 外形尺寸 Dimensions | 1400kg 1400kg |
