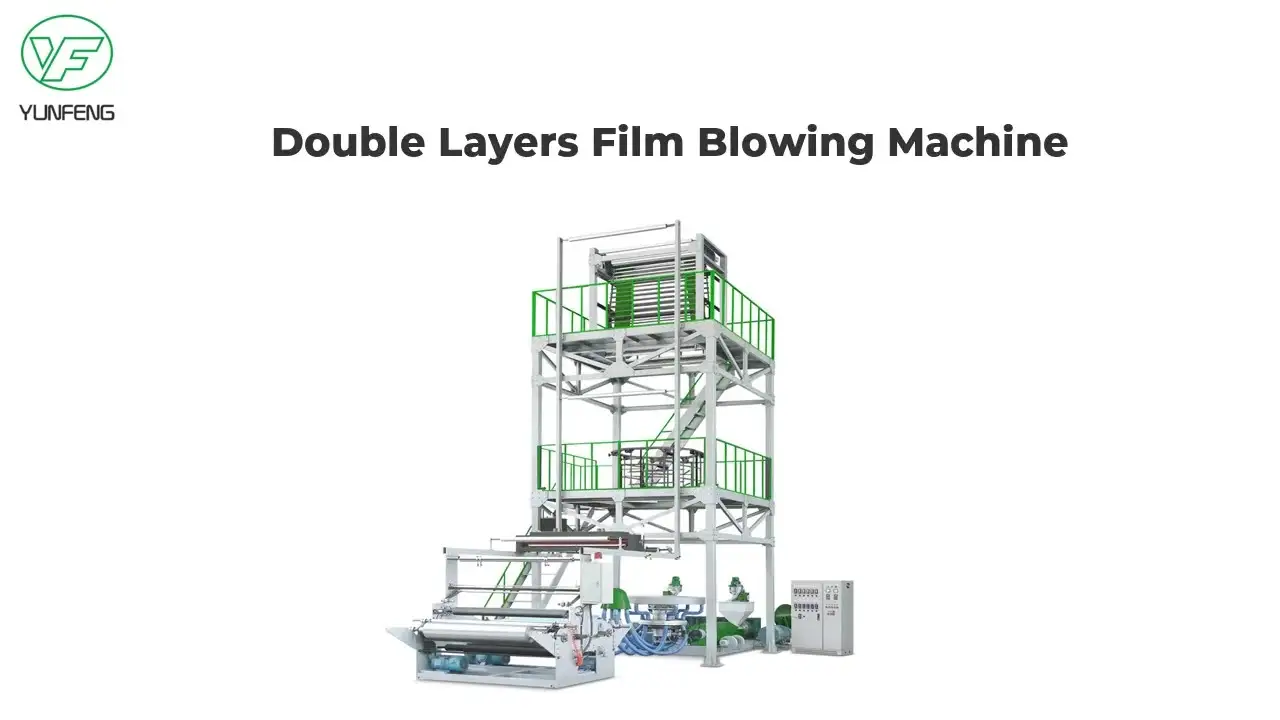

Double Layers Film Blowing Machine
This machine adopts two extruders to plasticize and squeeze two kinds of same or different materials into the co-extrusion compound head to produce the co-extrusion compound film, which greatly improves the physical properties of the film, increases its strength, and makes the film have good barrier and air tightness
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Parameter
| Model | YF-FE800 | YF-FE1000 | YF-FE1200 | YF-FE1500 | YF-FE2000 |
| Suitable material | HDPE LDPE LLDPE | HDPE LDPE LLDPE | HDPE LDPE LLDPE | HDPE LDPE LLDPE | HDPE LDPE LLDPE |
| Max width of film | 800mm | 1000mm | 1200mm | 1500mm | 2000mm |
| Thickness of film | 0.008-0.2mm | 0.008-0.2mm | 0.008-0.2mm | 0.008-0.2mm | 0.008-0.2mm |
| Max extrusion output | 80-100kg | 100-150kg | 80-180kg | 100-200kg | 150-260kg |
| Gear box | 133×2 | 146×2 | 173×2 | 180×2 | 200×2 |
| Screw diameter | φ50mm×2 | φ55mm×2 | Φ60mm×2 | φ65mm×2 | Φ70mm×2 |
| Screw L/D ratio | 28:1 | 28:1 | 28:1 | 28:1 | 28:1 |
| Main motor power | 11kw×2 | 15kw×2 | 18.5kw×2 | 22kw×2 | 45kw×2 |
| Die size | Φ180 | Φ220 | Φ250mm | Φ350mm | Φ500mm |
| Roller width | 900mm | 1100mm | 1300mm | 1600mm | 2200mm |
| Roller width | 900mm | 1100mm | 1300mm | 1600mm | 2200mm |
| Supply voltage | 380V/ 50Hz | 380V/ 50Hz | 380V/ 50Hz | 380V/ 50Hz | 380V/ 50Hz |
| Machine weight | 5500kg | 2000kg | 2500kg | 3000kg | 3200kg |
| Dimensions | 6000×2500×5800mm | 600×2700×6500mm | 6500×2900×7500mm | 6800×3200×7500mm | 7000×3700×8500mm |
