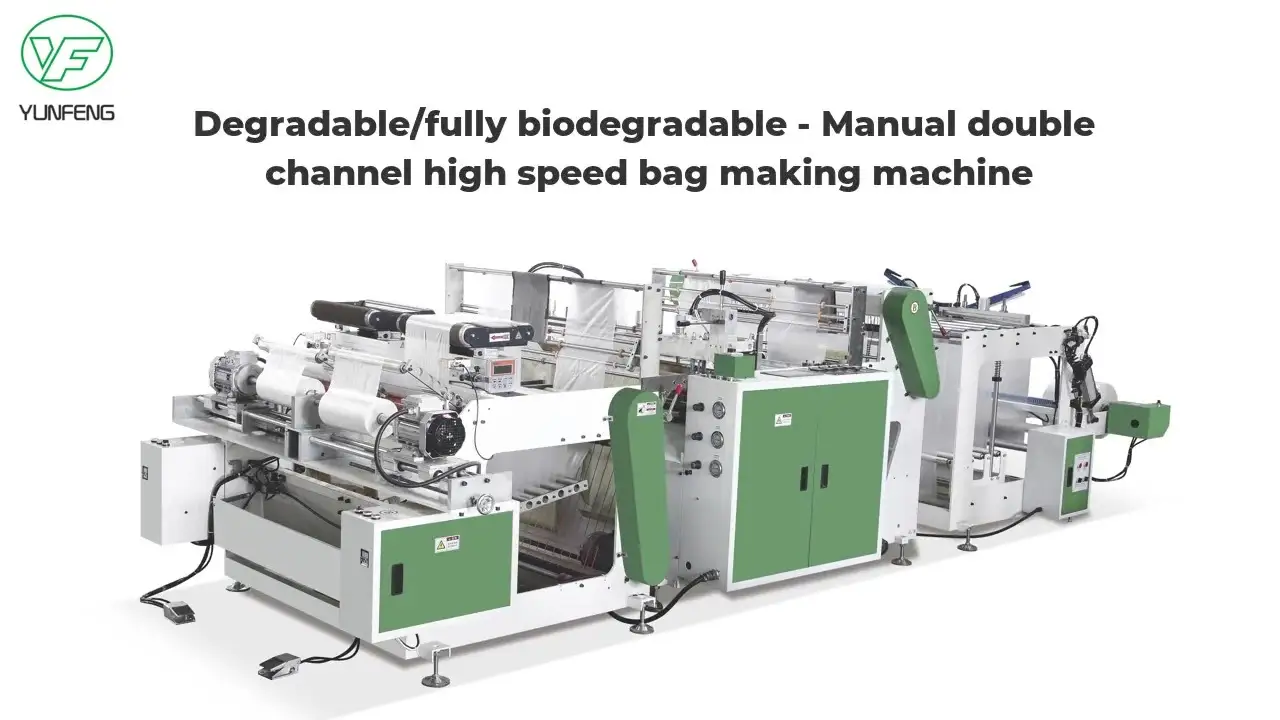

Degradable/fully biodegradable - Manual double channel high speed bag making machine
The machine mainly processes even roll bags, using no tension design, so that the machine in high speed operation of the seal more stable, firm.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Parameter
| Model | YF-FE600 | YF-FE800 | YF-FE1000 | YF-FE1200 |
| Suitable material | HDPE LDPE LLDPE | HDPE LDPE LLDPE | HDPE LDPE LLDPE | HDPE LDPE LLDPE |
| Max width of film | 600mm | 800mm | 1000mm | 1200mm |
| Thickness of film | 0.008-0.2mm | 0.008-0.2mm | 0.008-0.2mm | 0.008-0.2mm |
| Max extrusion output | 60kg | 80kg | 90kg | 110kg |
| Gear box | 133×1,146×1 | 146×1,173×1 | 173×2 | 173×1,200×1 |
| Screw diameter | Φ45mm×1,Φ50mm×1 | φ50mm×1,Φ55mm×1 | Φ55mm×1,Φ60mm×1 | Φ60mm×1,Φ65mm×1 |
| Screw L/D ratio | 28:1 | 28:1 | 28:1 | 28:1 |
| Main motor power | 11kw×2 | 15kw×1,18.5×1 | 18.5kw×1,22kw×1 | 22kw×1,30kw×1 |
| Die size | φ50 | φ80 | Φ120 | φ150 |
| Roller width | 700mm | 900mm | 1100mm | 1300mm |
| Roller width | 700mm | 900mm | 1100mm | 1300mm |
| Supply voltage | 380V/ 50Hz | 380V/ 50Hz | 380V/ 50Hz | 380V/ 50Hz |
| Machine weight | 3000kg | 3200kg | 3500kg | 3800kg |
| Dimensions | 5200×2500×4500mm | 5200×2800×4800mm | 5500×3200×5200mm | 5800×3500×5800mm |
