Custom plastic blow film machine supply Manufacturer | Yunfeng

Lots of factors are taken into consideration in Yunfeng design. They are required motion, required space, speed of operation, required labor, etc.

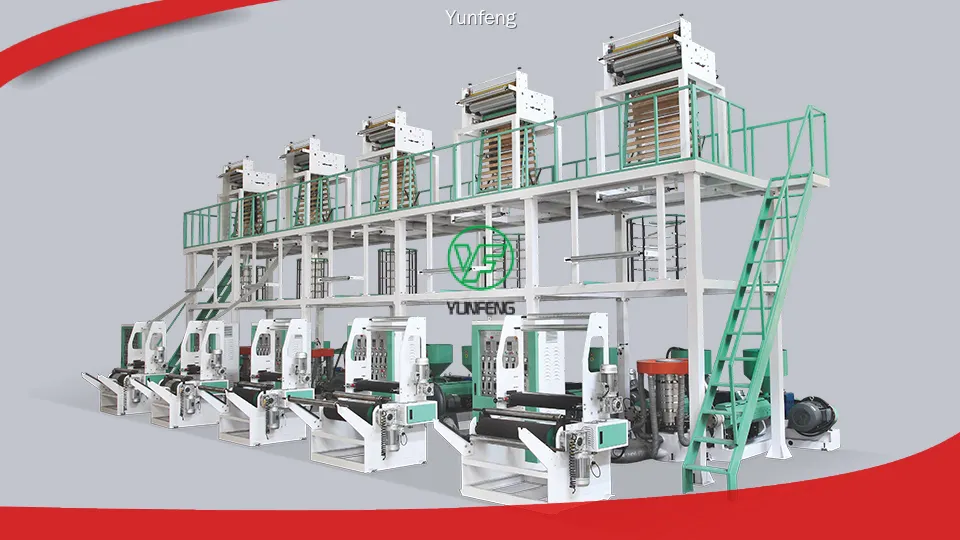

This ABA film blowing machine has unique characteristics in HDPE, LDPE and LLDPE.The physical strength of the film is improved by multi-layer co-extrusion, and the configuration of a main machine can be reduced, and the cost can be reduced, and the energy consumption can be reduced.

Inquiry

Always striving toward excellence, Yunfeng has developed to be a market-driven and customer-oriented enterprise. We focus on strengthening the capabilities of scientific research and completing service businesses. We have set up a customer service department to better provide customers with prompt services including order tracking notice. plastic blow film machine We have been investing a lot in the product R&D, which turns out to be effective that we have developed plastic blow film machine. Relying on our innovative and hard-working staff, we guarantee that we offer customers the best products, the most favorable prices, and the most comprehensive services as well. Welcome to contact us if you have any questions.With such high efficiency, the product can only guarantee the necessary agility of processes but also bring as many profits as possible.

Parameter

Model	YF-FE600	YF-FE800	YF-FE1000	YF-FE1200
Suitable material	HDPE LDPE LLDPE	HDPE LDPE LLDPE	HDPE LDPE LLDPE	HDPE LDPE LLDPE
Max width of film	600mm	800mm	1000mm	1200mm
Thickness of film	0.008-0.2mm	0.008-0.2mm	0.008-0.2mm	0.008-0.2mm
Max extrusion output	60kg	80kg	90kg	110kg
Gear box	133×1,146×1	146×1,173×1	173×2	173×1,200×1
Screw diameter	Φ45mm×1,Φ50mm×1	φ50mm×1,Φ55mm×1	Φ55mm×1,Φ60mm×1	Φ60mm×1,Φ65mm×1
Screw L/D ratio	28:1	28:1	28:1	28:1
Main motor power	11kw×2	15kw×1,18.5×1	18.5kw×1,22kw×1	22kw×1,30kw×1
Die size	φ50	φ80	Φ120	φ150
Roller width	700mm	900mm	1100mm	1300mm
Roller width	700mm	900mm	1100mm	1300mm
Supply voltage	380V/ 50Hz	380V/ 50Hz	380V/ 50Hz	380V/ 50Hz
Machine weight	3000kg	3200kg	3500kg	3800kg
Dimensions	5200×2500×4500mm	5200×2800×4800mm	5500×3200×5200mm	5800×3500×5800mm

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
