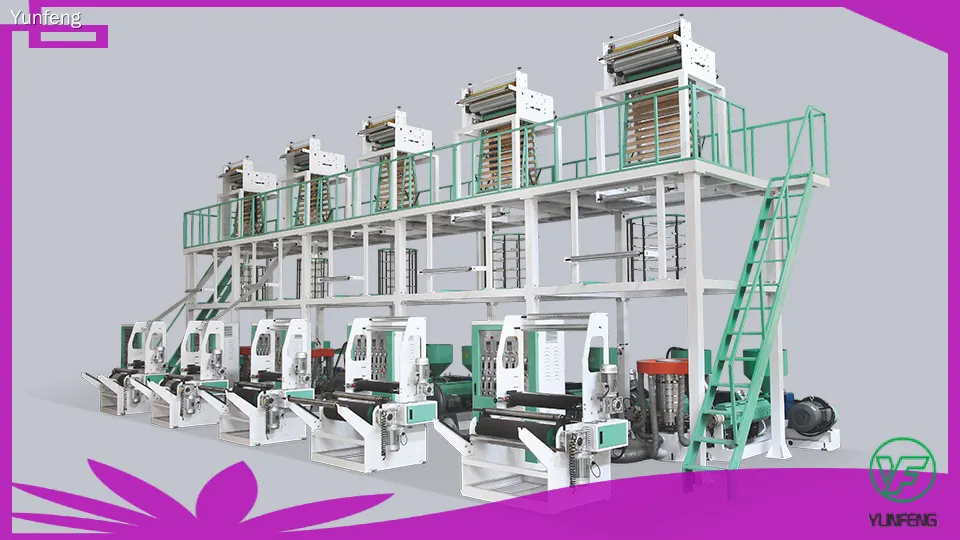

This ABA film blowing machine has unique characteristics in HDPE, LDPE and LLDPE.The physical strength of the film is improved by multi-layer co-extrusion, and the configuration of a main machine can be reduced, and the cost can be reduced, and the energy consumption can be reduced.
Always striving toward excellence, Yunfeng has developed to be a market-driven and customer-oriented enterprise. We focus on strengthening the capabilities of scientific research and completing service businesses. We have set up a customer service department to better provide customers with prompt services including order tracking notice. blown film extruder We promise that we provide every customer with high-quality products including blown film extruder and comprehensive services. If you want to know more details, we are glad to tell you.Yunfeng blown film extruder is manufactured with various sophisticated mechanical components. These components are specialized drills, piston, motors, rollers, and engines which are all delicately made.
| Model | YF-FE600 | YF-FE800 | YF-FE1000 | YF-FE1200 |
| Suitable material | HDPE LDPE LLDPE | HDPE LDPE LLDPE | HDPE LDPE LLDPE | HDPE LDPE LLDPE |
| Max width of film | 600mm | 800mm | 1000mm | 1200mm |
| Thickness of film | 0.008-0.2mm | 0.008-0.2mm | 0.008-0.2mm | 0.008-0.2mm |
| Max extrusion output | 60kg | 80kg | 90kg | 110kg |
| Gear box | 133×1,146×1 | 146×1,173×1 | 173×2 | 173×1,200×1 |
| Screw diameter | Φ45mm×1,Φ50mm×1 | φ50mm×1,Φ55mm×1 | Φ55mm×1,Φ60mm×1 | Φ60mm×1,Φ65mm×1 |
| Screw L/D ratio | 28:1 | 28:1 | 28:1 | 28:1 |
| Main motor power | 11kw×2 | 15kw×1,18.5×1 | 18.5kw×1,22kw×1 | 22kw×1,30kw×1 |
| Die size | φ50 | φ80 | Φ120 | φ150 |
| Roller width | 700mm | 900mm | 1100mm | 1300mm |
| Roller width | 700mm | 900mm | 1100mm | 1300mm |
| Supply voltage | 380V/ 50Hz | 380V/ 50Hz | 380V/ 50Hz | 380V/ 50Hz |
| Machine weight | 3000kg | 3200kg | 3500kg | 3800kg |
| Dimensions | 5200×2500×4500mm | 5200×2800×4800mm | 5500×3200×5200mm | 5800×3500×5800mm |
