Yunfeng is a plastic bag making machine and film blowing machine manufacturer in China. WeChat/Whatsapp: +86 13780172923

Professional plastic blow film machine suppliers | Yunfeng

When Yunfeng was developed, numerous disciplines were blended to ensure its success. Various types of knowledge, including computer science, information technology, automatic control technology, and mechanical engineering, were considered and integrated into its development. This approach has enabled Yunfeng to stand out among its competitors and continue to evolve.

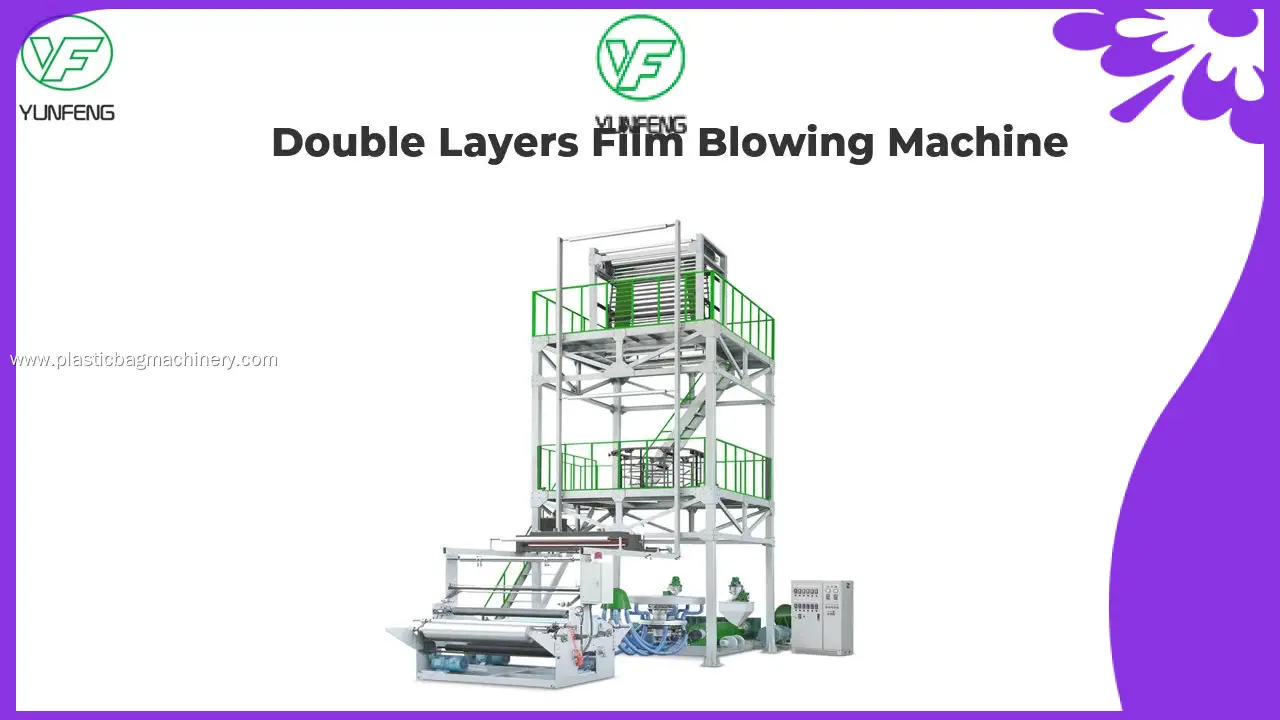

This machine adopts two extruders to plasticize and squeeze two kinds of same or different materials into the co-extrusion compound head to produce the co-extrusion compound film, which greatly improves the physical properties of the film, increases its strength, and makes the film have good barrier and air tightness

Inquiry

Over the years, Yunfeng has been offering customers high-quality products and efficient after-sales services with the aim of bringing unlimited benefits for them. plastic blow film machine We have professional employees who have years of experience in the industry. It is them that provides high-quality services for customers all over the world. If you have any questions about our new product plastic blow film machine or want to know more about our company, feel free to contact us. Our professionals would love to help you at any time.The product helps cut labor costs. It greatly reduces the need for more workers, which will help save expenditures for business owners.

Parameter

Model	YF-FE800	YF-FE1000	YF-FE1200	YF-FE1500	YF-FE2000
Suitable material	HDPE LDPE LLDPE	HDPE LDPE LLDPE	HDPE LDPE LLDPE	HDPE LDPE LLDPE	HDPE LDPE LLDPE
Max width of film	800mm	1000mm	1200mm	1500mm	2000mm
Thickness of film	0.008-0.2mm	0.008-0.2mm	0.008-0.2mm	0.008-0.2mm	0.008-0.2mm
Max extrusion output	80-100kg	100-150kg	80-180kg	100-200kg	150-260kg
Gear box	133×2	146×2	173×2	180×2	200×2
Screw diameter	φ50mm×2	φ55mm×2	Φ60mm×2	φ65mm×2	Φ70mm×2
Screw L/D ratio	28:1	28:1	28:1	28:1	28:1
Main motor power	11kw×2	15kw×2	18.5kw×2	22kw×2	45kw×2
Die size	Φ180	Φ220	Φ250mm	Φ350mm	Φ500mm
Roller width	900mm	1100mm	1300mm	1600mm	2200mm
Roller width	900mm	1100mm	1300mm	1600mm	2200mm
Supply voltage	380V/ 50Hz	380V/ 50Hz	380V/ 50Hz	380V/ 50Hz	380V/ 50Hz
Machine weight	5500kg	2000kg	2500kg	3000kg	3200kg
Dimensions	6000×2500×5800mm	600×2700×6500mm	6500×2900×7500mm	6800×3200×7500mm	7000×3700×8500mm

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
