Quality plastic blow film machine cost | Yunfeng

The development of Yunfeng plastic blow film machine has taken different factors into consideration. They are mainly structure fabrication, mechanical parts stability, welding quality, and the whole machine efficiency.

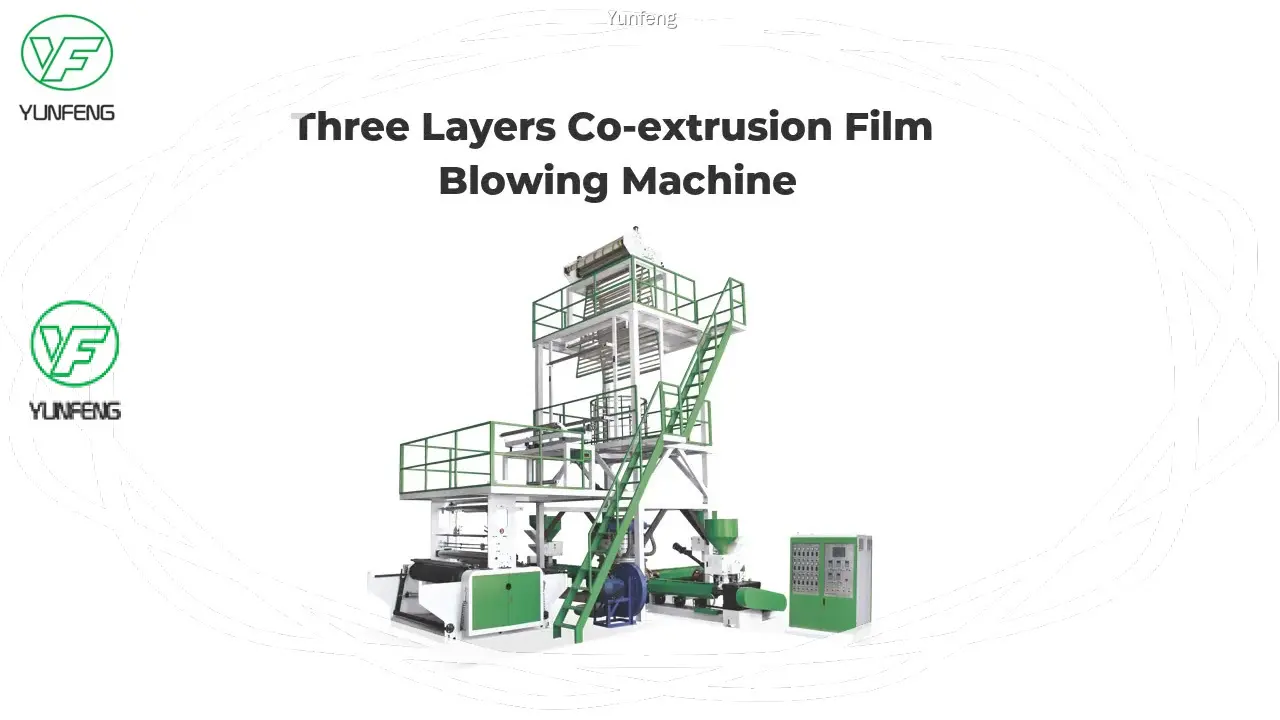

This machine adopts three extruders to plasticize and squeeze three kinds of same or different materials into the co-extrusion compound head to produce the co-extrusion compound film, which greatly improves the physical properties of the film, increases its strength, and makes the film have good barrier and air tightness.

Inquiry

Always striving toward excellence, Yunfeng has developed to be a market-driven and customer-oriented enterprise. We focus on strengthening the capabilities of scientific research and completing service businesses. We have set up a customer service department to better provide customers with prompt services including order tracking notice. plastic blow film machine We will do our best to serve customers throughout the whole process from product design, R&D, to delivery. Welcome to contact us for further information about our new product plastic blow film machine or our company.The basic design steps of Yunfeng are as followed: recognition of its need or purpose, selection of a possible mechanism, analysis of forces, material selection, design of elements (sizes and stresses), detailed drawing, etc.

Parameter

Model	YF-FE1200	YF-FE1500	YF-FE2000	YF-FE2500	YF-FE3000
Suitable material	HDPE LDPE LLDPE	HDPE LDPE LLDPE	HDPE LDPE LLDPE	HDPE LDPE LLDPE	HDPE LDPE LLDPE
Max width of film	1200mm	1500mm	2000mm	2500mm	3000mm
Thickness of film	0.008-0.2mm	0.008-0.2mm	0.008-0.2mm	0.008-0.2mm	0.008-0.2mm
Max extrusion output	110-180kg	150-220kg	160-280kg	250-300kg	280-380kg
Gear box	146/173/146	173/180/173		180	180
Screw diameter	φ55mm/φ60mm/φ55mm	Φ60mm/φ65mmφ60mm	φ65mm/φ70mm/φ65mm	Φ80mm×3	Φ90mm×3
Screw L/D ratio	28:1	28:1	28:1	28:1	28:1
Main motor power	18.5kw/22kw/18.5kw	22kw/30kw/22	30kw/37kw/30kw	37kw×3	55kw×3
Die size	Φ250mm	Φ400mm	Φ500mm	Φ600mm	Φ800mm
Roller width	1300mm	1600mm	2200mm	2700mm	3200mm
Roller width	1300mm	1600mm	2200mm	2700mm	3200mm
Supply voltage	380V/ 50Hz	380V/ 50Hz	380V/ 50Hz	380V/ 50Hz	380V/ 50Hz
Machine weight	6000kg	800kg	10000kg	15000kg	20000kg
Dimensions	6800×3000×6200mm	7500×3600×7500mm	9000×4800×8500mm	9500×5300×1100mm	10000×5800×11800mm

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
