Yunfeng | Custom plastic film blowing machine company

The product promotes relief of worker fatigue and stress because it makes work easier and requires less skill intervention.

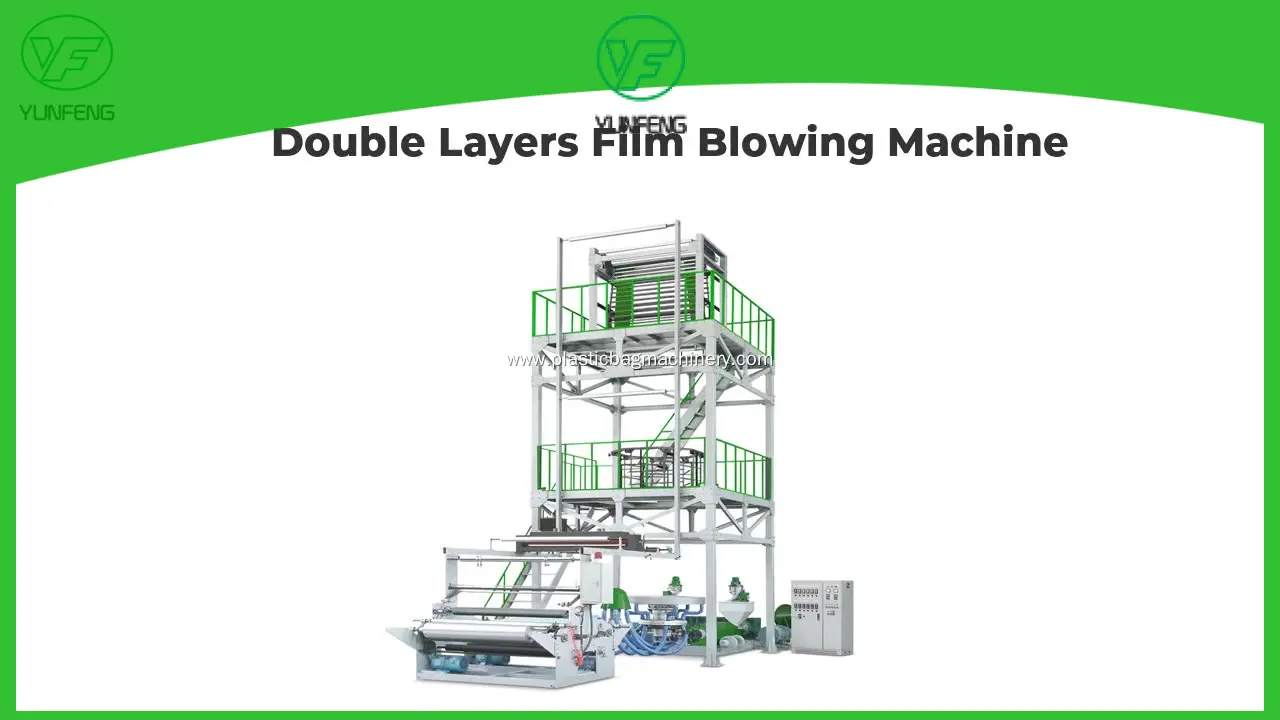

This machine adopts two extruders to plasticize and squeeze two kinds of same or different materials into the co-extrusion compound head to produce the co-extrusion compound film, which greatly improves the physical properties of the film, increases its strength, and makes the film have good barrier and air tightness

Inquiry

With strong R&D strength and production capabilities, Yunfeng now has become a professional manufacturer and reliable supplier in the industry. All our products including plastic film blowing machine are manufactured based on the strict quality management system and international standards. plastic film blowing machine We have been investing a lot in the product R&D, which turns out to be effective that we have developed plastic film blowing machine. Relying on our innovative and hard-working staff, we guarantee that we offer customers the best products, the most favorable prices, and the most comprehensive services as well. Welcome to contact us if you have any questions.The design of Yunfeng plastic film blowing machine shows professionalism. The mechanical properties, including materials hardness, structural toughness, efficiency, fatigue resistance have all optimized.

Parameter

Model	YF-FE800	YF-FE1000	YF-FE1200	YF-FE1500	YF-FE2000
Suitable material	HDPE LDPE LLDPE	HDPE LDPE LLDPE	HDPE LDPE LLDPE	HDPE LDPE LLDPE	HDPE LDPE LLDPE
Max width of film	800mm	1000mm	1200mm	1500mm	2000mm
Thickness of film	0.008-0.2mm	0.008-0.2mm	0.008-0.2mm	0.008-0.2mm	0.008-0.2mm
Max extrusion output	80-100kg	100-150kg	80-180kg	100-200kg	150-260kg
Gear box	133×2	146×2	173×2	180×2	200×2
Screw diameter	φ50mm×2	φ55mm×2	Φ60mm×2	φ65mm×2	Φ70mm×2
Screw L/D ratio	28:1	28:1	28:1	28:1	28:1
Main motor power	11kw×2	15kw×2	18.5kw×2	22kw×2	45kw×2
Die size	Φ180	Φ220	Φ250mm	Φ350mm	Φ500mm
Roller width	900mm	1100mm	1300mm	1600mm	2200mm
Roller width	900mm	1100mm	1300mm	1600mm	2200mm
Supply voltage	380V/ 50Hz	380V/ 50Hz	380V/ 50Hz	380V/ 50Hz	380V/ 50Hz
Machine weight	5500kg	2000kg	2500kg	3000kg	3200kg
Dimensions	6000×2500×5800mm	600×2700×6500mm	6500×2900×7500mm	6800×3200×7500mm	7000×3700×8500mm

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
