Yunfeng | High-quality double layer film blowing machine suppliers

The product features low electricity consumption. It is manufactured adopting the energy-saving technologies which can greatly cut energy consumption.

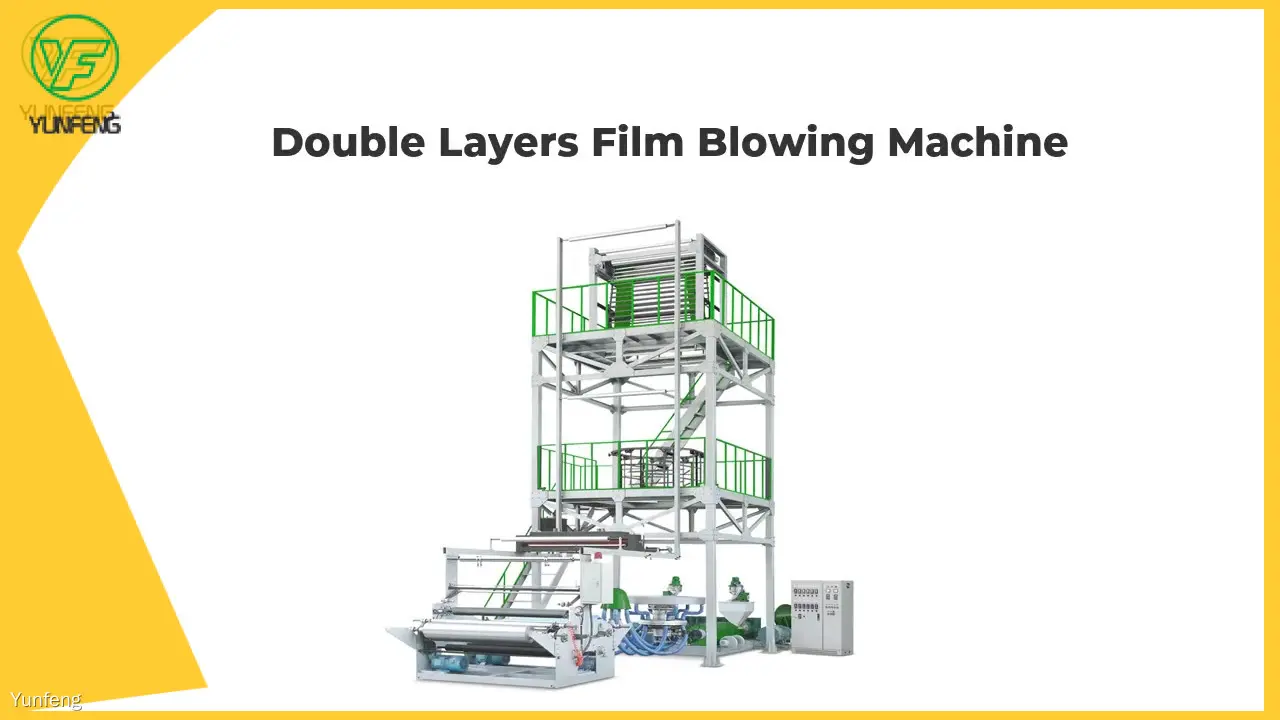

This machine adopts two extruders to plasticize and squeeze two kinds of same or different materials into the co-extrusion compound head to produce the co-extrusion compound film, which greatly improves the physical properties of the film, increases its strength, and makes the film have good barrier and air tightness

Inquiry

Yunfeng has developed to be a professional manufacturer and reliable supplier of high-quality products. Throughout the whole production process, we strictly implement the ISO quality management system control. Since established, we always adhere to independent innovation, scientific management, and continuous improvement, and provide high-quality services to meet and even exceed customers' requirements. We guarantee our new product double layer film blowing machine will bring you a lot of benefits. We are always standby to receive your inquiry. double layer film blowing machine We promise that we provide every customer with high-quality products including double layer film blowing machine and comprehensive services. If you want to know more details, we are glad to tell you.Yunfeng has undergone an optimization process to improve its mechanical structure, spindle and drive system, control, and inspection systems. The redesign effort has successfully enhanced the overall performance of the brand.

Parameter

Model	YF-FE800	YF-FE1000	YF-FE1200	YF-FE1500	YF-FE2000
Suitable material	HDPE LDPE LLDPE	HDPE LDPE LLDPE	HDPE LDPE LLDPE	HDPE LDPE LLDPE	HDPE LDPE LLDPE
Max width of film	800mm	1000mm	1200mm	1500mm	2000mm
Thickness of film	0.008-0.2mm	0.008-0.2mm	0.008-0.2mm	0.008-0.2mm	0.008-0.2mm
Max extrusion output	80-100kg	100-150kg	80-180kg	100-200kg	150-260kg
Gear box	133×2	146×2	173×2	180×2	200×2
Screw diameter	φ50mm×2	φ55mm×2	Φ60mm×2	φ65mm×2	Φ70mm×2
Screw L/D ratio	28:1	28:1	28:1	28:1	28:1
Main motor power	11kw×2	15kw×2	18.5kw×2	22kw×2	45kw×2
Die size	Φ180	Φ220	Φ250mm	Φ350mm	Φ500mm
Roller width	900mm	1100mm	1300mm	1600mm	2200mm
Roller width	900mm	1100mm	1300mm	1600mm	2200mm
Supply voltage	380V/ 50Hz	380V/ 50Hz	380V/ 50Hz	380V/ 50Hz	380V/ 50Hz
Machine weight	5500kg	2000kg	2500kg	3000kg	3200kg
Dimensions	6000×2500×5800mm	600×2700×6500mm	6500×2900×7500mm	6800×3200×7500mm	7000×3700×8500mm

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
