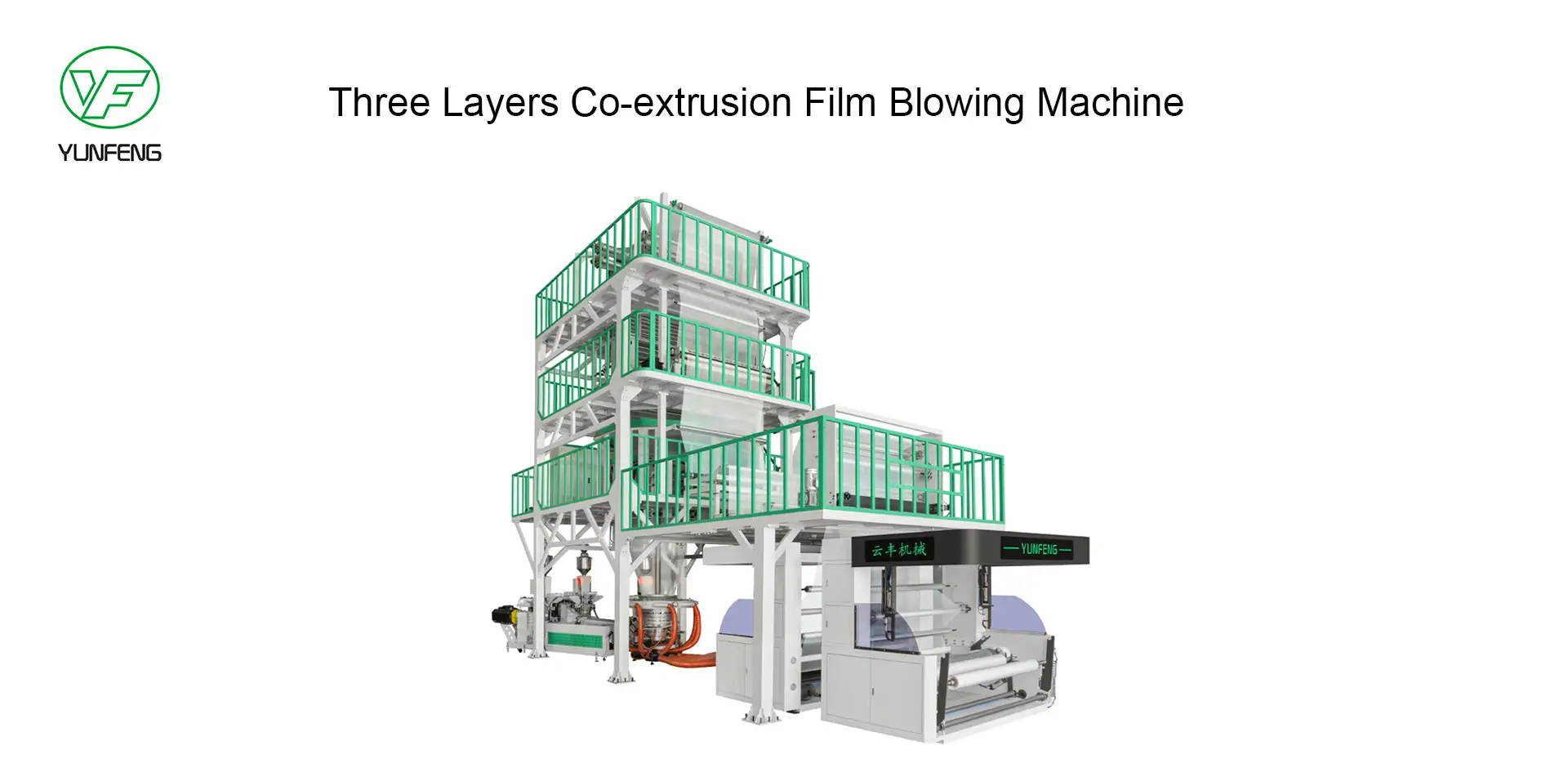

Professional three layers film blowing machine manufacturers
Three-layer co-blowing extrusion machine adopts ABC three-layer co-extrusion technology,the equipment is equipped with intelligent temperature control system and automatic correction device to ensure that the film thickness is uniform, the flatness is impeccable, and the finished product rate is up to 99%.
Automatic rewinding system: Complete the rewinding operation with one key without manual intervention, greatly improve production efficiency, reduce material waste, and achieve seamless continuous production.
The IBC internal cooling system is combined with a low energy design to significantly reduce energy consumption while increasing production efficiency.
Touch screen +PLC centralized control system, easy to operate, real-time parameter monitoring, one-click control of the production process. Support a variety of materials co-extrusion, flexible to meet customer needs.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Parameter
____________________________________________________________________________________________________________________________________________________________
| Model | YF-FE3L1200 | YF-FE3L1500 | YF-FE3L2000 | YF-FE3L2500 | YF-FE3L3000 |
| Suitable material | HDPE LDPE LLDPE | HDPE LDPE LLDPE | HDPE LDPE LLDPE | HDPE LDPE LLDPE | HDPE LDPE LLDPE |
| Max width of film | 1200mm | 1500mm | 2000mm | 2500mm | 3000mm |
| Thickness of film | 0.008-0.2mm | 0.008-0.2mm | 0.008-0.2mm | 0.008-0.2mm | 0.008-0.2mm |
| Max extrusion output | 110-180kg | 150-220kg | 160-280kg | 250-300kg | 280-380kg |
| Gear box | 146/173/146 | 173/180/173 | 180/200/180 | 200/225/200 | 225/250/225 |
| Screw diameter | φ55/φ60/φ55 | Φ60/φ65/φ60 | φ65/φ70/φ65 | Φ70/φ75/φ70 | Φ80//φ90//φ85 |
| Screw L/D ratio | 30:1 | 30:1 | 30:1 | 30:1 | 30:1 |
| Main motor power | 18.5kw/22kw/18.5kw | 22kw/30kw/22 | 30kw/37kw/30kw | 37kw×3 | 55kw×3 |
| Die size | Φ300mm | Φ350mm | Φ450mm | Φ600mm | Φ700mm |
| Roller width | 1300mm | 1600mm | 2200mm | 2700mm | 3200mm |
| Supply voltage | 380V/ 50Hz | 380V/ 50Hz | 380V/ 50Hz | 380V/ 50Hz | 380V/ 50Hz |
| Dimensions（kg） | 6800×3600×6500 | 7500×4000×7500 | 9000×4800×8500 | 9500×5300×11000 | 10000×5800×11800 |
| Machine weight | 6000kg | 800kg | 10000kg | 15000kg | 20000kg |
| Dimensions | 6800×3000×6200mm | 7500×3600×7500mm | 9000×4800×8500mm | 9500×5300×1100mm | 10000×5800×11800mm |
